PA-32 6xt
- Price: Sold
- Year: 2006
- Serial: 3255051
- Registration: N313PP
- TTAF: 150
- Ad Type: For Sale
- Location: KRYY
- Type: Sold
Summary:
The Piper 6XT was derived from the popular Saratoga series. The 6XT is a turbocharged fixed landing gear aircraft. The aircraft seats six in a double club arrangement and has plenty of available payload to use those seats. The turbocharged 6XT has a 300 hp TIO-540 and cruises at up to 165 knots. The Piper 6X is powered by a 300 hp Lycoming IO-540 and has cruise speeds up to 153 knots.
Airframe Details:
DIMENSIONS
Wing Span 36.2 ft/11.0 m
Length 27.8 ft/8.5 m
Height 9.5 ft/2.9 m
Cabin Length 124.25 in/315.6 cm
WING AREA
Wing Area 178.3 ft2/16.56 m2
FUEL ANDOIL CAPACITY
Usable Fuel 102 gal/386 liters
Oil Capacity 12 qts/11.4 liters
MAXIMUM SPEED TAS
Mid-Cruise Weight @ 10,000 ft
172 kts/319 km/h
CRUISING SPEED TAS
High Performance Cruise @10,000 ft
161 kts/298 km/h
CRUISING RANGE
Cruising range includes 45 minute fuel reserve at
long range power plus allowance for fuel used
during taxi, take- off, climb at maximum climb
power, cruise and descent
Long Range Cruise Power 931 nm/1,724 km
STALL SPEED IAS
Flaps Down Full 40° 59 kias/109 km/h
59 kcas/109 kn/h
MAXIMUM OPERATING ALTITUDE
Maximum Operating Altitude 20,000 ft/6,096 m
BAGGAGE
Volume
Forward Compartment 7 ft3/0.2 m3
Aft Compartment 17.3 ft3/0.49 m3
Capacity
Forward Compartment 100 lbs/45.4 kg
Aft Compartment 100 lbs/45.4 k
Wing Span 36.2 ft/11.0 m
Length 27.8 ft/8.5 m
Height 9.5 ft/2.9 m
Cabin Length 124.25 in/315.6 cm
WING AREA
Wing Area 178.3 ft2/16.56 m2
FUEL ANDOIL CAPACITY
Usable Fuel 102 gal/386 liters
Oil Capacity 12 qts/11.4 liters
MAXIMUM SPEED TAS
Mid-Cruise Weight @ 10,000 ft
172 kts/319 km/h
CRUISING SPEED TAS
High Performance Cruise @10,000 ft
161 kts/298 km/h
CRUISING RANGE
Cruising range includes 45 minute fuel reserve at
long range power plus allowance for fuel used
during taxi, take- off, climb at maximum climb
power, cruise and descent
Long Range Cruise Power 931 nm/1,724 km
STALL SPEED IAS
Flaps Down Full 40° 59 kias/109 km/h
59 kcas/109 kn/h
MAXIMUM OPERATING ALTITUDE
Maximum Operating Altitude 20,000 ft/6,096 m
BAGGAGE
Volume
Forward Compartment 7 ft3/0.2 m3
Aft Compartment 17.3 ft3/0.49 m3
Capacity
Forward Compartment 100 lbs/45.4 kg
Aft Compartment 100 lbs/45.4 k
Engine(s) Details:
Engine-Lycoming IO-540-AH1A 300 HP at 2500 RPM
Direct Drive, 6 Cylinder, Fuel Injection Dual
Magnetos/Ignition with Shielding
Dynafocal Engine Mounts with Internal Dampers
Light Weight Geared Starter, 28 Volt
Air Filter
Full Flow Oil Coolers (Two) with Thermostatic Control
Muffler and Exhaust System
Alternate Induction Air with Manual Control
Oil Quick Drain
Dual Engine Driven Vacuum Pumps
Propeller - Hartzell, 3 Blade, Constant Speed
Polished Propeller Spinner
Direct Drive, 6 Cylinder, Fuel Injection Dual
Magnetos/Ignition with Shielding
Dynafocal Engine Mounts with Internal Dampers
Light Weight Geared Starter, 28 Volt
Air Filter
Full Flow Oil Coolers (Two) with Thermostatic Control
Muffler and Exhaust System
Alternate Induction Air with Manual Control
Oil Quick Drain
Dual Engine Driven Vacuum Pumps
Propeller - Hartzell, 3 Blade, Constant Speed
Polished Propeller Spinner

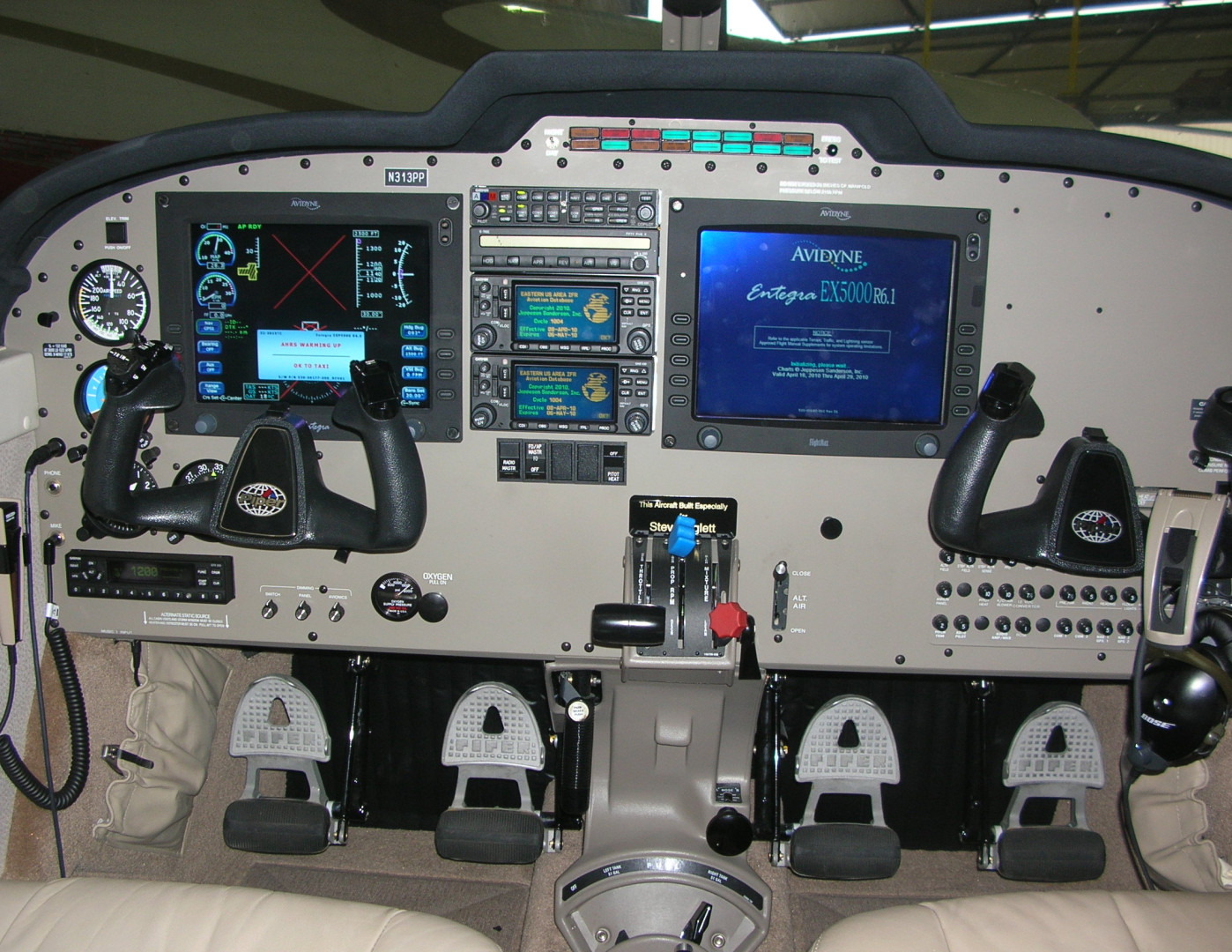

Avionics:
Avidyne Flight Max Entegra Flat Panel Display Aircraft Include:
PFD, MFD, 2nd GNS-430, Autopilot with Electric Trim, Integrated
Altitude Preselect, and standby instruments (airspeed, altimeter,
electric attitude indicator with back-up battery).
Primary Flight Display Avidyne EXP5000
Multi Function Display Avidyne EX5000
COMM/NAV/GS/GPS #1 Garmin GNS-430
COMM/NAV/GS/GPS #2 Garmin GNS-430
Autopilot S-TEC System 55x
Integrated Altitude Pre-Selector (on PFD)
Vacuum Pumps Removed – All electric airplane
Audio Panel Garmin GMA-340
Digital Transponder with Traffic Garmin GTX-330
Information System
Control Wheel Mic Button
Avionics Master Switch
Microphone
Headset Telex Airman
Speaker with Mic/Phone Jacks
Static Discharge Wicks
Automatic Emergency Locator Transmitter (ELT
PFD, MFD, 2nd GNS-430, Autopilot with Electric Trim, Integrated
Altitude Preselect, and standby instruments (airspeed, altimeter,
electric attitude indicator with back-up battery).
Primary Flight Display Avidyne EXP5000
Multi Function Display Avidyne EX5000
COMM/NAV/GS/GPS #1 Garmin GNS-430
COMM/NAV/GS/GPS #2 Garmin GNS-430
Autopilot S-TEC System 55x
Integrated Altitude Pre-Selector (on PFD)
Vacuum Pumps Removed – All electric airplane
Audio Panel Garmin GMA-340
Digital Transponder with Traffic Garmin GTX-330
Information System
Control Wheel Mic Button
Avionics Master Switch
Microphone
Headset Telex Airman
Speaker with Mic/Phone Jacks
Static Discharge Wicks
Automatic Emergency Locator Transmitter (ELT

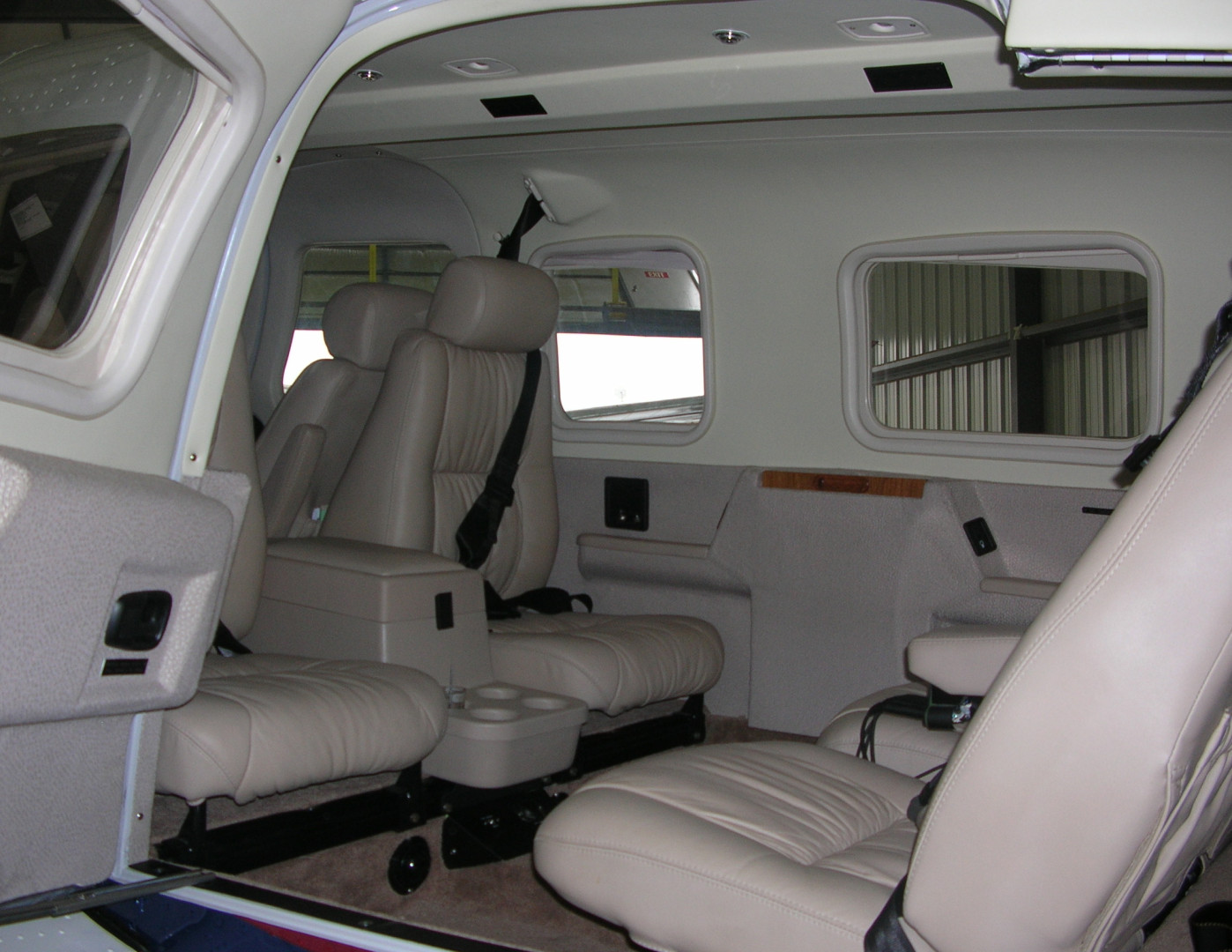

Interior:
Cabin Width 48.75 in/123.8 cm
Cabin Height 42.0 in/106.7 cm
Headroom (Seat to Ceiling)
Front Seats 38 in/96.5 cm
Middle Seats 35.75 in/90.8 cm
Rear Seats 34.50 in/87.6 cm
Interiors include color coordinated simulated leather seats, side panels, and carpeting.
Cabin Height 42.0 in/106.7 cm
Headroom (Seat to Ceiling)
Front Seats 38 in/96.5 cm
Middle Seats 35.75 in/90.8 cm
Rear Seats 34.50 in/87.6 cm
Interiors include color coordinated simulated leather seats, side panels, and carpeting.

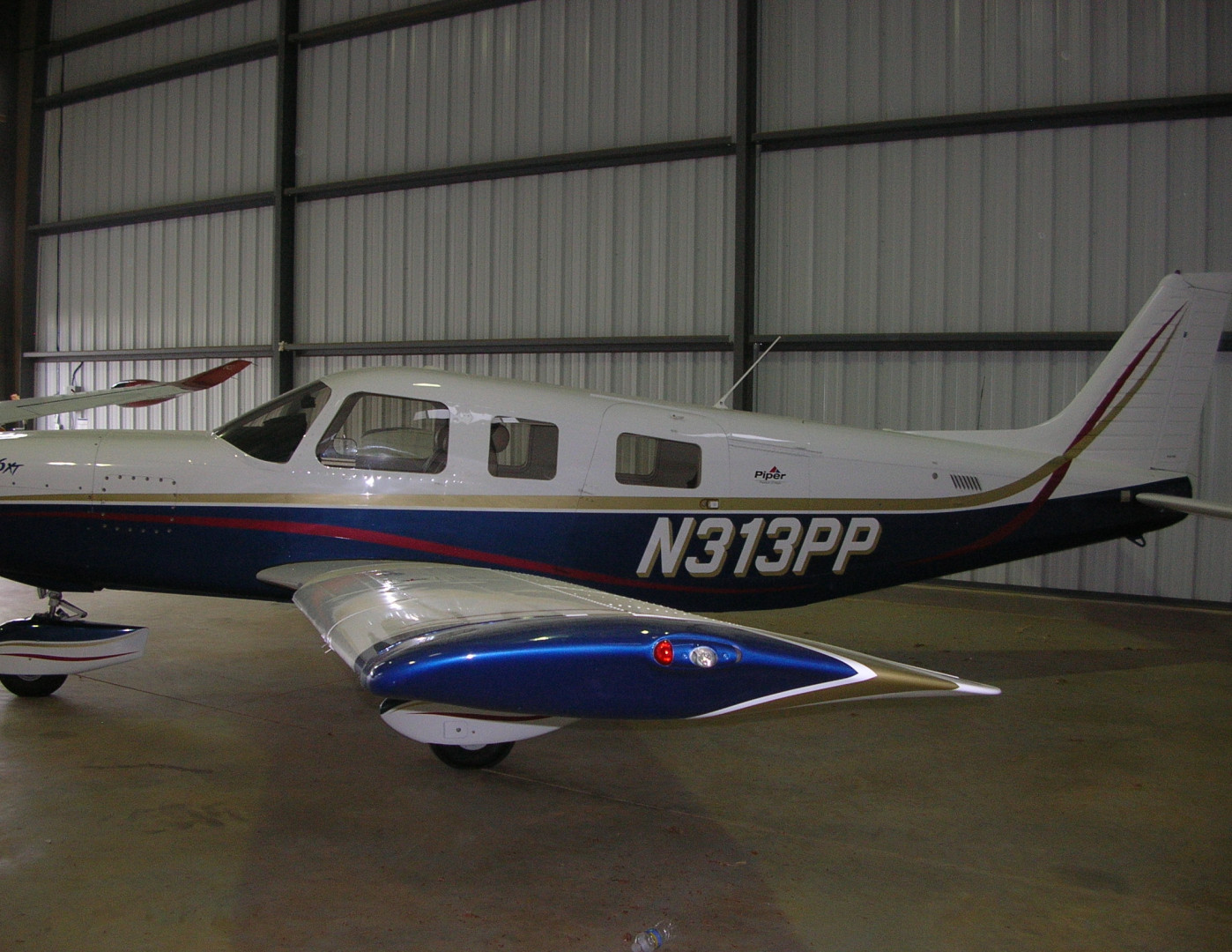

Exterior:
blue/ white, gold/red stripe
Maintenance:
all logs available
Addition Features, Equipment or Comments:
one owner
