Sold Aircraft

1947 Beechcraft Bonanza BE-35

  • Price: Sold
  • Year: 1947
  • Serial: D-948
  • Registration: N3738N
  • TTAF: 5045TT
  • Ad Type: For Sale
  • Location: Cave Creek, AZ
  • Type: Sold
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35
  • 1947 Beechcraft Bonanza BE-35

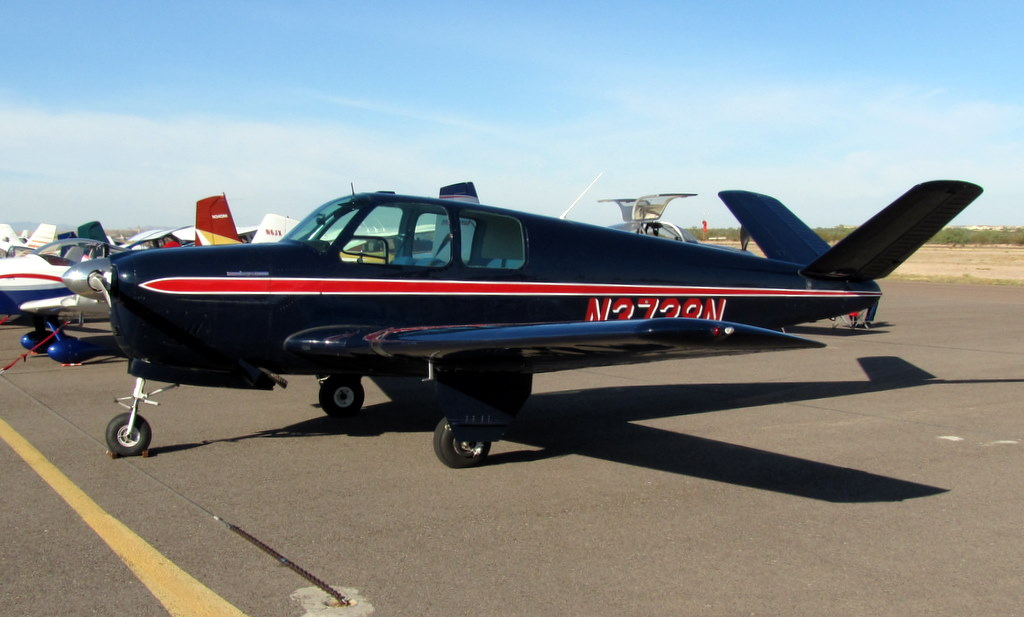

Summary:
The classic 1947 Beechcraft Bonanza 35 is an American general aviation aircraft with a single engine and four seats with distinctive v-tail. It has always been well maintained and hangared with complete log books to prove it.

Engine: 434 SMOH
Propeller: 299 SPOH (10/98) – 49 hrs since AD 97-18-02R1 compliance (03/2015)
Annual Due: 08/2018
Transponder check completed: 01/201
Airframe Details:
• AD 2002-21-13 complied with on 04/2005 by test
• Spar Center Section AD 63-25-01 (Miller Spar Strap installed so inspection not due until 1000
hrs)
• Repaired landing gear motor to new specifications (05/2005)
• Flap motor overhauled
• Right fuel tank replaced 12/2007 with Eagle Fuel Cells unit. Installed Eagle Fuel Cells wing fuel
sump drains
• Installed auxiliary electric fuel pump (12/2007)
• Installed LC-2 electric clock

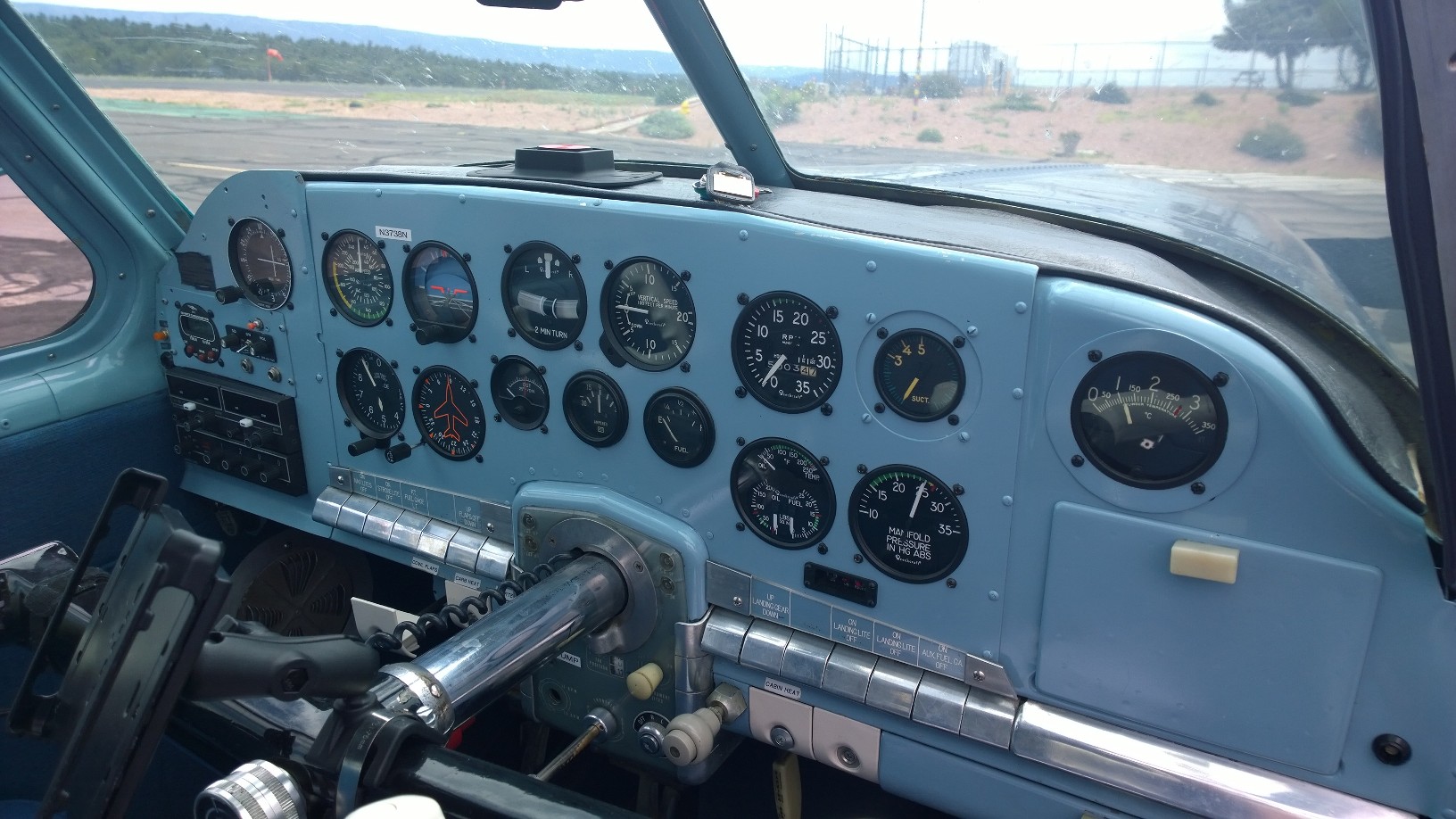

• Overhauled 3-In-1 Engine gauge, MP, Tach, T&B, Attitude Gyro, DG, VSI. Updated ASI with
proper markings for E-225 engine and airframe speed markings
• Replaced all tie-rod ends and springs on landing gear
• Shimmy dampener overhauled & new brake hoses @ brake cylinders (05/2012)
• Rebuilt both brakes with new seals (06/2008)
• Installed new Concorde RG-35A battery (09/2010)
Engine(s) Details:
• Air Wolf remote oil filter installed
• Tanis engine preheat system
• Vacuum pump replaced w/OH unit (05/2007)
• Factory OH TCM Bendix magnetos (03/2009)
• Engine-driven fuel pump (TF-1900) overhauled (03/2009)
• Pressure carburetor PS-5C repaired and flow tested (03/2009)
1947 Beechcraft Bonanza BE-35
• Replaced fuel hoses and upper & lower oil hoses from oil tank (03/2009)
• Valve cover gaskets (SA646234-S) replaced using new fasteners (SA535118)
• Crankshaft seal and “O” rings in prop control replaced (06/2007)
• Propeller B119 diaphragm replaced (03/2015)
• Installed Plane Power ER 14-50 (14 Volt) alternator and voltage regulator (05/2012)
Avionics:

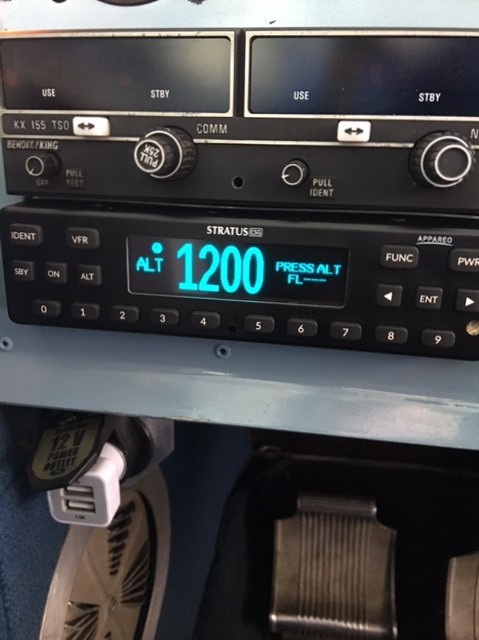

• King KX-155 NAV/COM w/GS (I-209 Nav Head)
• Stratus ESGi Transponder (ADS-B Out) with Stratus 2i hardwired (ADS-B In)
Works with ForeFlight
• PTT switch both Pilot & Co-Pilot
• Sigtronics SA400 intercom
• LEMO headset connections for Pilot & Co-Pilot. Standard (two plug) connections for front and
rear seats

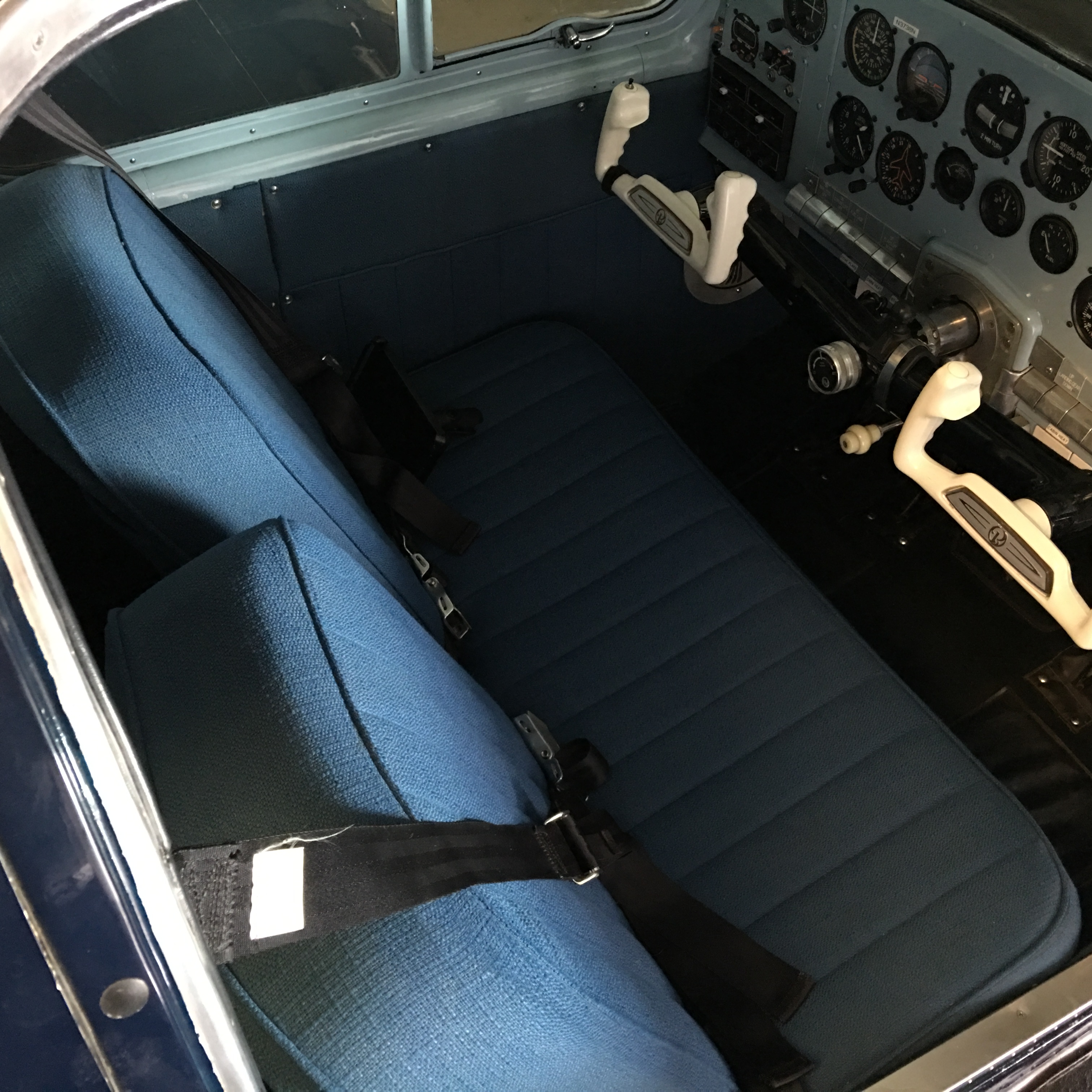

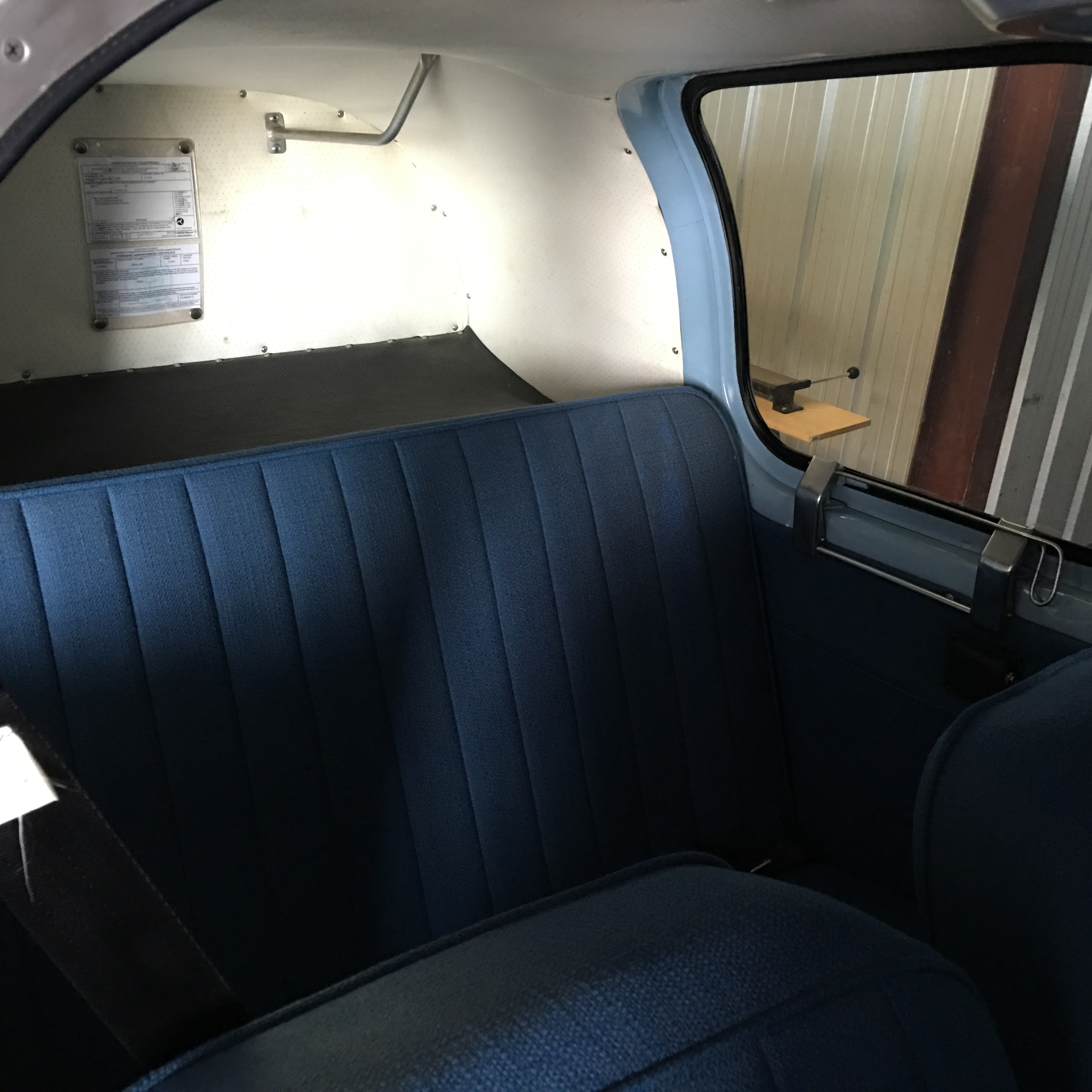

Interior:
• Installed soundproofing
• Installed shoulder harness system (Pilot & Co-Pilot)
• New window and door seals from Aircraft Door Seals (08/2008)
• Cabin door hinges re-bushed and door latch adjusted to accommodate new door seal (08/2008)
Exterior:
• Flag (Navy) blue with white and red trim
Addition Features, Equipment or Comments:
EQUIPMENT
• 60 Gal fuel (54 useable) Includes aux tank in baggage compartment
• Plane Power 14 volt alternator conversion
• Stowable Co-Pilot rudder pedals
• Rosen sun visors
• Oil quick drain valve
• Collapsible tow bar w/tug attachment

All refurbishment work documented with either STC’s 337’s or logbook entries. Logbooks are
complete. Current “yellow tags” cover all overhauled components.
